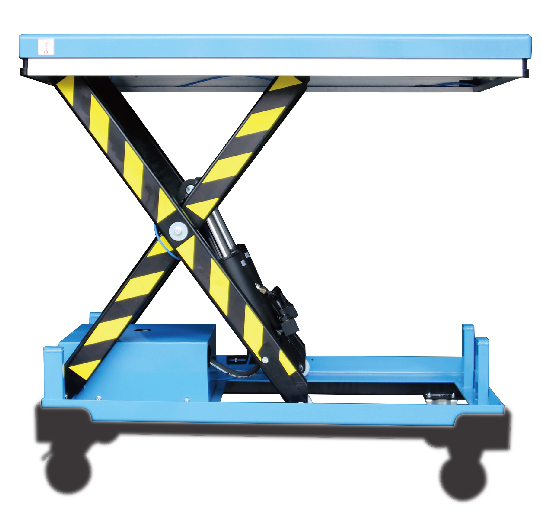

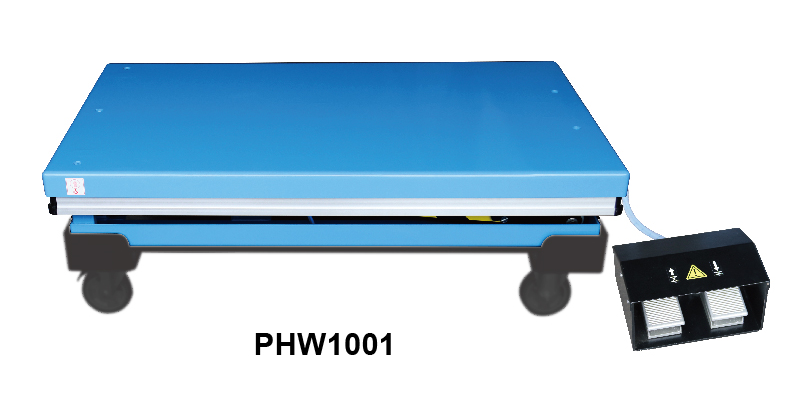

PHW1001 Pneumatic Lift Table | 1000kg Air-Powered Industrial Lifter

The PHW1001 Pneumatic Lift Table from the PHW series is a heavy-duty lifting solution designed for industrial applications. Powered by compressed air, this air-powered lift table delivers energy-efficient performance, making it ideal for warehouses, manufacturing plants, and assembly lines. With a 1000kg (2200lb) load capacity, it provides safe and reliable vertical lifting for pallets, machinery, and heavy materials.

Гол онцлог

100% Air-Powered Operation – No electricity required, eliminating explosion risks from sparks in hazardous environments like auto repair shops, flour mills, chemical plants, and oil & gas facilities.

Pneumatic Safety Design – Equipped with an internal brass velocity fuse, upper travel limit switch, and hinged maintenance prop for secure, reliable lifting.

Industrial-Grade Construction – Features precision pins & bearings, toe guards, and a two-button hand control for smooth, durable performance.

Technical Specifications

Тодорхойлолт	Metric (mm/kg)	Imperial (in./lb.)
Model Number	PHW1001	PHW1001
Хүчин чадал	1000 kg	2200 lb
Платформын хэмжээ	1300×820 mm	51.2×32.3 in
Maximum Lift Height	990 mm	39 in
Minimum Lift Height	205 mm	8.1 in
Хэмжээ	1266×680 mm	49.8×26.8 in
Lifting Time	25±5 seconds	25±5 seconds
Pneumatic Motor Power	3 Kw	3 Kw

Why Choose Our Pneumatic Lift Table?

Explosion-Proof – Safe for ATEX zones, flammable dust areas, and volatile vapor environments where electric lifts are prohibited.

Low Maintenance – No motors or wiring to fail—just connect to compressed air for instant operation.

Versatile Applications – Ideal for automotive garages, food processing plants, grain silos, and industrial workshops.

Precision Control – Two-button hand control allows easy lifting/lowering with adjustable airflow for speed regulation.

Compare to Hydraulic/Electric Lifts

Feature	PHW Pneumatic Lift	Electric Lift	Hydraulic Lift
Explosion Risk	✅Zero (air-powered)	⚠️ High (sparks)	⚠️ Moderate (fluid leaks)
Maintenance	✅ Minimal (no fluids/motors)	❌ High (wiring/motors)	❌ Moderate (seals/pumps)
Power Source	Compressed Air	Electricity	Hydraulic Pump
Ideal For	Flour mills, auto shops, chemical plants	Warehouses, factories	Heavy machinery
